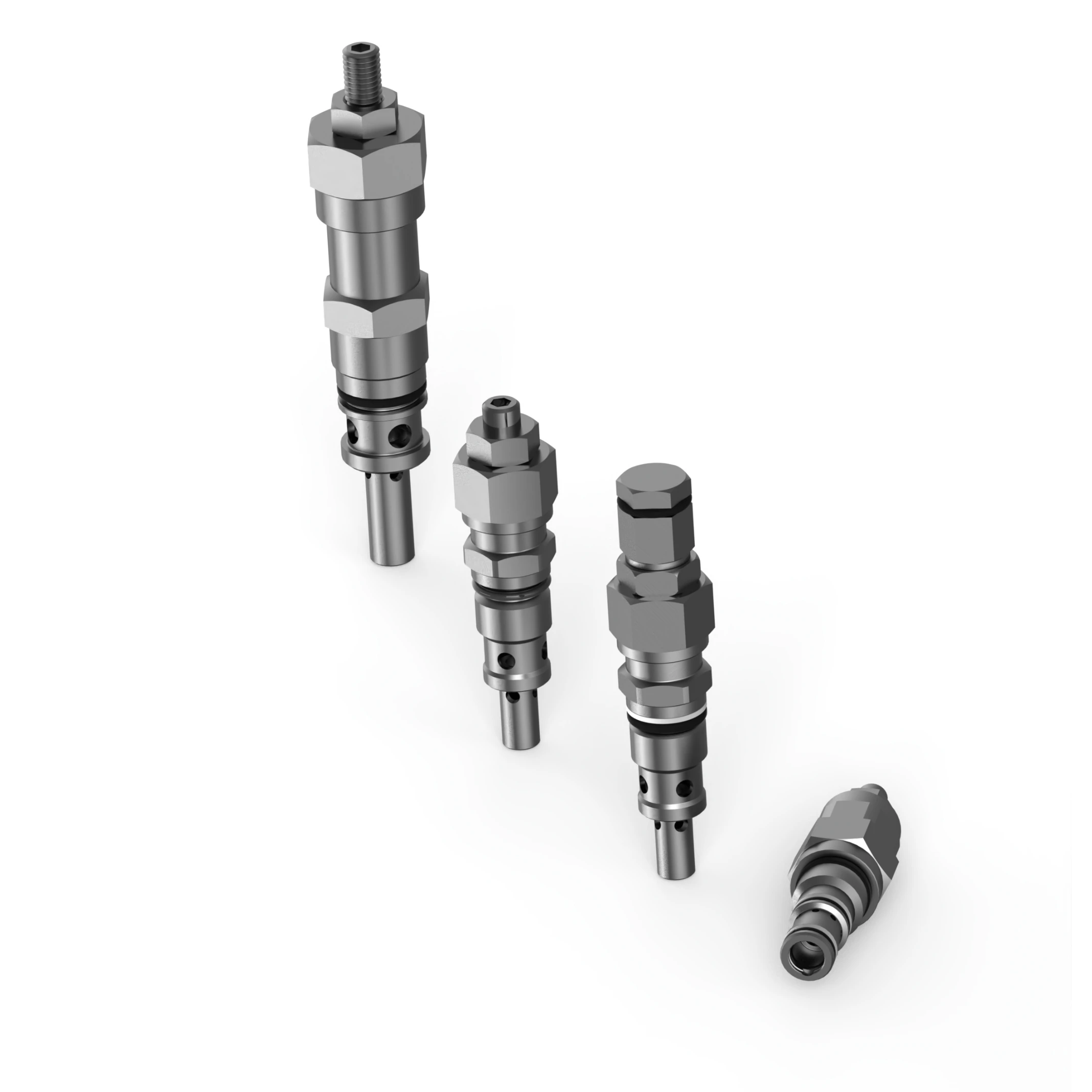

Valve-technology
To put the power where it's needed.Thanks to our many years of engineering knowledge and greater usage of our high-quality valves. We offer highly compact solutions that are perfectly adapted to customer requirements for a working pressure of up to 700 bar and a flow rate of up to 400 l/min.

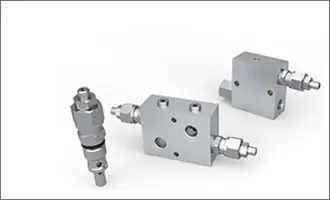

Pressure Valves

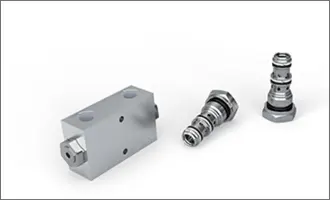

Shut off valve

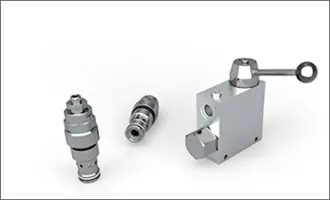

Flow control valve

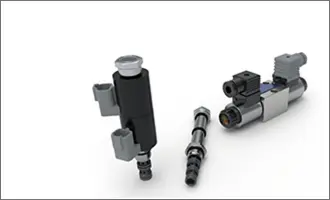

Directional control valve

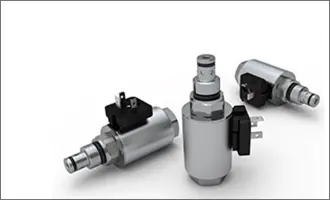

Proportioning valve
6 good reasons
Why Seal Concept is the right partner for you
- Outstanding Stock Availability
- Competent advice and service
- Training by our technicians
- Technical support for projects
- Webshop of the latest standard
- Fast delivery

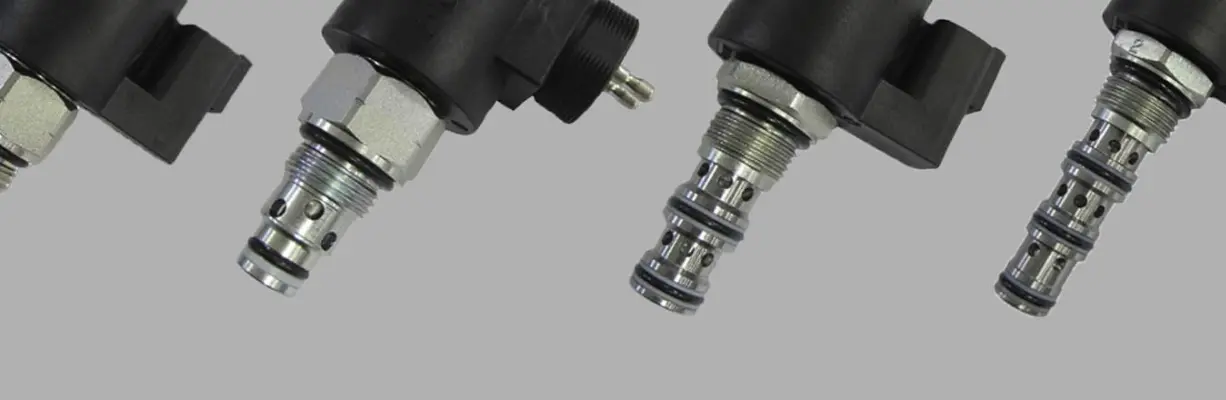

New Solenoid Concept
The new generation of solenoid valve cartridges and coils :
Bosch Rexroth solenoid valve cartridges – the standardized solution to meet the latest market requirements.
- Diameter expansion from 12.7mm to 16mm - on all magnet tubes
- Standardization of the coil types through uniformly round D36 magnet coils
- Huge performance improvement: Leakage: max 5 drops/minute
- Max. ambient temperature 90 °C
- Voltage range +/- 15% of nominal voltage
- Perfect interchangeability ⇒ due to identical bores as previous versions
- Easier and more flexible positioning ⇒ due to the new round shape (rotating the coil)
- More compact design ⇒ more compact block configuration
The D36 solenoid coil is the basis of the New Solenoid Concept from Bosch Rexroth.
Properties:
- Optimized technical performance ⇒ wide range of applications
- Robust design ⇒ Can be used in the latest environment without any problems
- Coils exceed IP69K standard ⇒ testing under extreme vibration and temperature cycling conditions
- Best suited for stable long-term operation
- Resistance against corrosion - through complete plastic coating
